Operation Guide

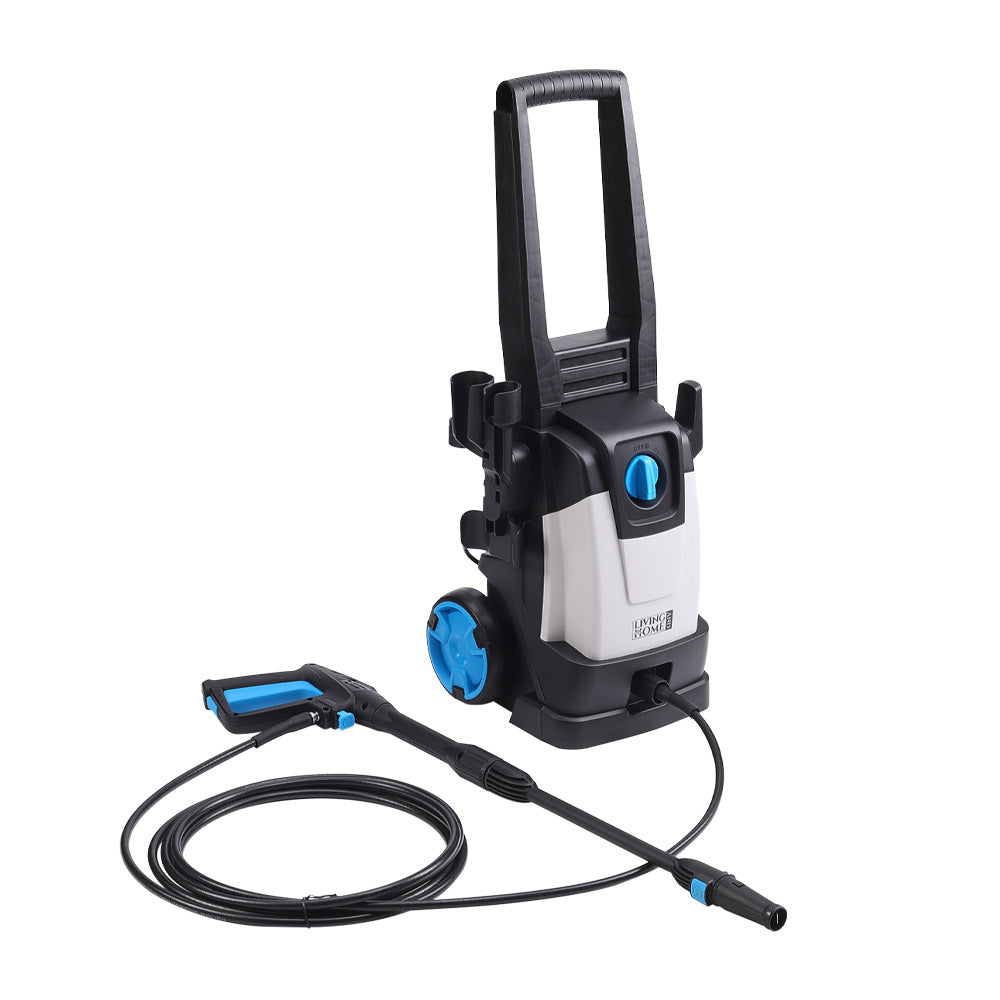

1.Attach the high-pressure hose to the pressure water outlet of the machine.
2.Attach the spray handle to the high-pressure hose.
3.Mount the nozzle or any other equipment you want to use.
4.Connect the machine to the water and power supplies.
5.Rotate the nozzle to select a spray pattern from approximately0° to 60°.
6.Turn the machine on and squeeze the trigger for activation.
7.Follow the sequence of "rinse with water - spray detergent- rinse with water" and clean from the bottom to the top.
8.Turn off the motor and water supply, squeeze the trigger to reduce the pressure.

Safety Guidelines
• Read all instructions before using the
• Ensure safety devices are operating properly before using the machine.
• ALWAYS disconnect power before disassembling or repairing the unit of the
• Keep the operation area clear of all persons. Close supervision is necessary when children are around.
• Do not operate the machine when fatigued or under the influence of alcohol or
• Do not overreach or stand on unstable Stand firmly and keep balance at all times.
• Only place the machine on a stable surface during use, transportation, assembly, and dismantling.
• The machine is not intended to be connected to the potable water mains. If necessary, please use only the inlet hose-set approved by IEC 61770.
• Always wear goggles and protective clothing when operating maintenance.
• Never spray flammable liquids or use a pressure washer in areas containing combustible dust, liquids or vapors.
• Never operate the machine in a closed building or in or near an explosive environment.
• Never put hands or fingers over the spray tip while operating the machine.
• Always remove lance from gun before cleaning debris from the tip.
• NEVER direct the high-pressure spray at any person, animal or self.
• Never try to stop or deflect leaks with any body part.
• Always keep the trigger safety lock in the locked position even when spraying is stopped for a moment.
• The electrical supply connection shall be made by a qualified person and comply with IEC 60364-1.
• The motor of this pressure washer will NOT run unless the trigger is
• This machine is to be used only by trained operators.
